mesh panel length 12m Rebar size 5-12mm CE Reinforcing Mesh Welding Machine

उत्पत्ति के प्लेस चीन
ब्रांड नाम DIXUN
प्रमाणन CE & ISO 9001:2015
मॉडल संख्या DX-GWC2500B
न्यूनतम आदेश मात्रा एक सेट
पैकेजिंग विवरण स्पेयर पार्ट्स और कंट्रोल कैबिनेट को लकड़ी के बक्से में लोड किया जाएगा। मुख्य मशीन न्यूड पैकिंग है।
प्रसव के समय 30 कार्य दिवस
आपूर्ति की क्षमता प्रति माह 5 सेट
उत्पाद विवरण
प्रोडक्ट का नाम कंक्रीट सुदृढ़ीकरण बाड़ पैनल जाल वेल्डिंग मशीन तार का व्यास 5-12 मिमी
वेल्डिंग गति 40-70 बार/मिनट रेटेड क्षमता 150kva * 12 पीसी
जाल की चौड़ाई Max. मैक्स। 2.5m 2.5 मी जाल की लंबाई मैक्स। 12मी
नियंत्रण प्रणाली पीएलसी नियंत्रण लाइन वायर स्पेस 100-300
क्रॉस वायर स्पेस 100-300 वेल्डिंग दबाव वायु सिलेंडर
प्रमुखता देना

12m rebar mesh welding machine

,

CE reinforcing mesh welder

,

5-12mm rebar welding machine

एक संदेश छोड़ें
उत्पाद विवरण

Mesh Panel Length 12m Rebar Size 5-12mm CE Reinforcing Mesh Welding Machine





Reinforcing Mesh Welding Machine Introduction



The reinforcing mesh welding machine employs CNC synchronous control technology, with both the overall welding time and individual welding cycles controlled by a PLC digital programming system. The input interface is available as either a touch screen or keyboard, enabling more intelligent and rational operation. The rebar mesh welding machine uses a single clamping step combined with multiple welding stages, offering the key advantage of producing over 30 different mesh sizes between warp and weft on the same sheet. The welding process utilizes a new high-efficiency water-cooled welding transformer, significantly expanding the range of applicable wire diameters.



Reinforcing Mesh Welding Machine Features



1. Each welding transformer group of this welding mesh machine is independently controlled by a microcomputer, enabling single pressurization with multiple welds. The greatest advantage of this control system is the ability to produce over 30 different hole sizes between adjacent warp wires on the same mesh panel.
2. The welding electrode heads of this wire mesh machine are made of high-quality chromium-copper alloy material, ensuring a long service life and reducing production costs.
3. The wire mesh machine features a feeding method where the transverse wires are manually threaded, with automatic wire feeding function. This ensures precise positioning and reduces welding waiting time.
4. The welding mesh machine uses an automatic feeding method for the weft wire: the weft wire is automatically fed from a hopper, ensuring precise positioning.
5. The welding mesh machine uses a reciprocating web-pulling method driven by servo motors, with pneumatic clamping of the weft wires to ensure precise positioning during web pulling.
6. The reinforcing mesh welding machine features an automatic mesh sheet conveying system, enabling fully automatic stacking of mesh sheets. The sheets are neatly arranged and easy to transport, reducing labor and material costs.



Reinforcing Mesh Welding Machine Advantages



1. Efficient and Fast: Automated welding improves production efficiency and reduces labor costs.
2. Stable Welding Quality: Strong welds and uniform connections ensure mesh strength and durability.
3. Precise Control: A PLC system adjusts welding parameters for high-precision welding and dimensional control.
4. Energy-Saving and Environmentally Friendly: A rational design reduces energy and gas consumption, resulting in more economical operation.
5. Easy Operation: A touchscreen control interface allows for easy setup and monitoring of production status.
6. Wide Range of Applications: Supports a variety of rebar specifications to meet diverse project requirements.
7. Compact Structure: Saves factory space and facilitates installation and maintenance.



Reinforcing Mesh Welding Machine Technical Parameters



Item DX-2000CA DX-2500CA DX-3000CA DX-3300CA
Number of Electrodes 20 24 30 32
Max.Mesh Width 2000mm 2500mm 3000mm 3300mm
Wire Diameter 6.0-12mm 6.0-12mm 6.0-12mm 6.0-12mm
Mesh Length 3-12m 3-12m 3-12m 3-12m
Cross Wire Space 100-300mm 100-300mm 100-300mm 100-300mm
Line Wire Space 100-300mm 100-300mm 100-300mm 100-300mm
Line Wire Feeding Way Pre-cut Wires. By the Line Wire Sending Car
Cross Wire Feeding Way Pre-cut Wires. By the Special Electrical Hopper
Welding Transformer 200KVA*10 200KVA*12 200KVA*15 200KVA*16
Welding Pressure Air Cylinder
Welding speed 50-75 times/min 50-75 times/min 45-60 times/min 45-60 times/min
Control System PLC Control and Touch Screen



Applications of Reinforcing mesh



Reinforcing mesh welding machines are widely used in construction projects such as concrete structure reinforcement, road and bridge construction, tunnel and subway construction, prefabricated component manufacturing, industrial plant and warehouse construction, and water conservancy protection facilities, helping to efficiently produce high-quality steel mesh.



Reinforcing Mesh Welding Machine Photos

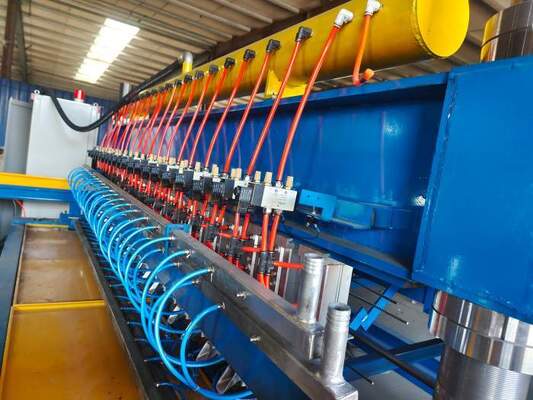

mesh panel length 12m Rebar size 5-12mm CE Reinforcing Mesh Welding Machine 0

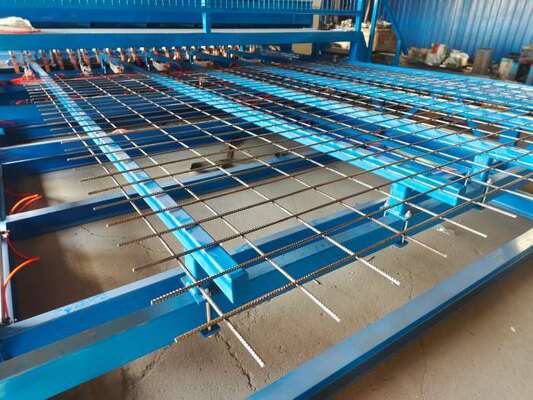

mesh panel length 12m Rebar size 5-12mm CE Reinforcing Mesh Welding Machine 1

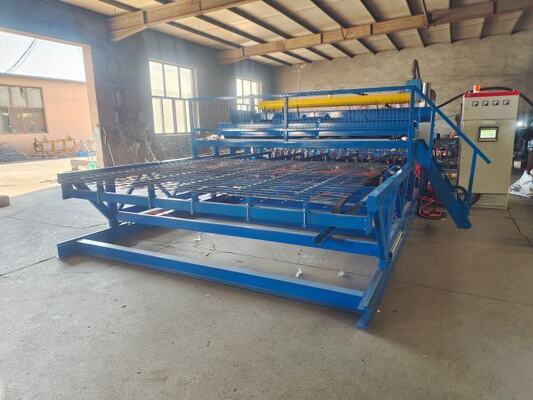

mesh panel length 12m Rebar size 5-12mm CE Reinforcing Mesh Welding Machine 2

mesh panel length 12m Rebar size 5-12mm CE Reinforcing Mesh Welding Machine 3
