Transformer 160kva Pneumatic Welding mesh 50*200mm Wire Mesh Welding Machine

1. The control system adopts synchronous CNC technology, PLC program and HMI. It is easy and convenient to operate with the touching screen.

2. The cross wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop cross wires automatically. The store cross device has more capacity can load max 1 tons wires.

3. Adjustable distance of vertical wire that allows different hole size between the vertical wire, when input the distance of cross wire to touch screen, any mesh size can be made. Welding mesh size can be adjustable randomly within range.

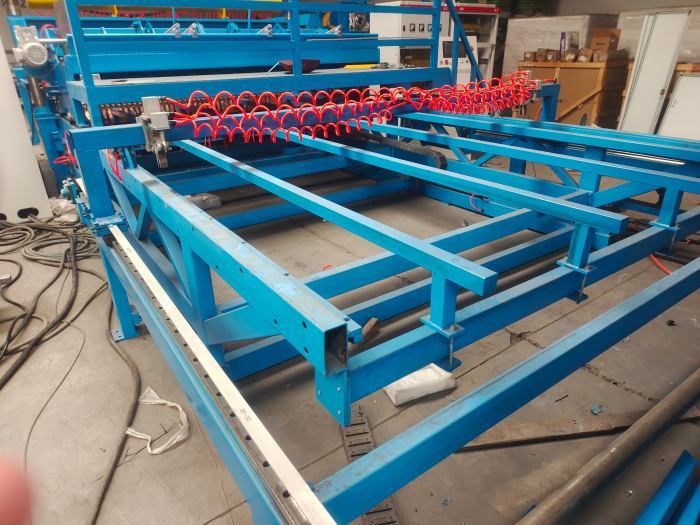

4. Pulling mesh system is controlled by servo motor. The servo motor adopt Delta brand,high precision and big power.

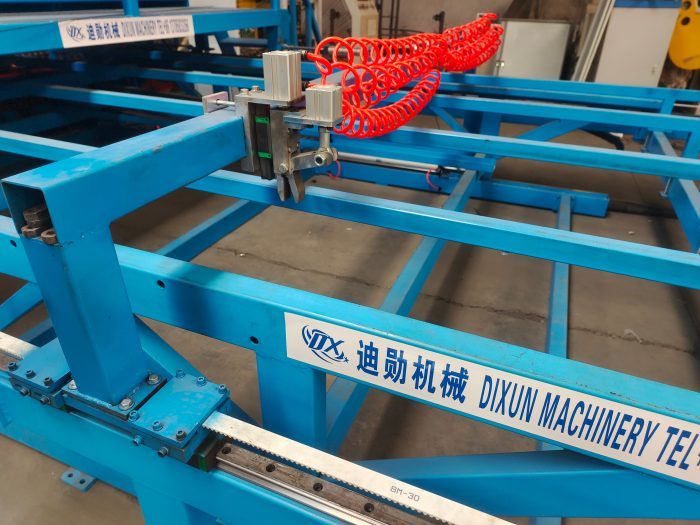

5. The up and down of pulling hook is controlled by air cylinder. And the mesh pulling distance (cross wire space) is adjusted by PLC on touch screen.

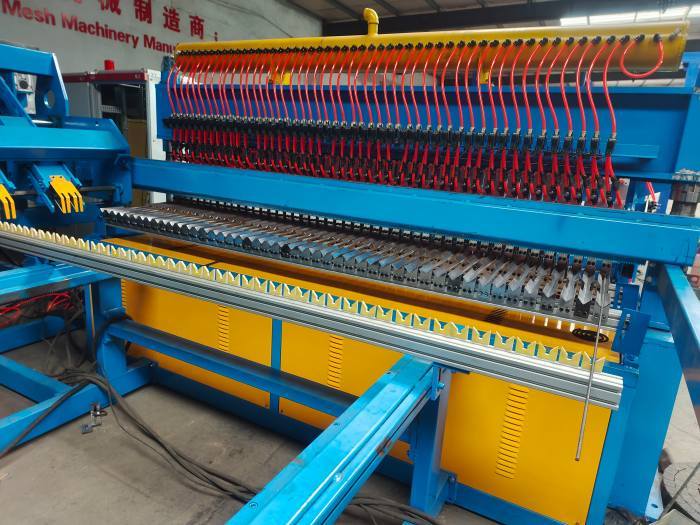

6. Cast water-cooling welding transformer:160KVA*9PCS (51 welding electrodes) ——every 6 welding electrodes need one welding transformer.And the welding transformer is water cooling. Which has a longer service life.

7. Wire feeding way: The vertical wires pre-straighten pre-cut. The horizontal wires pre-straightened and pre- cut.

8. The bending machine will bend the mesh panel automatically after the pulling mesh car push the mesh panel under the bending machine. The bending machine can bend the mesh panel in the beginning, in the middle and at the end. The bending machine is controlled by the control cabinet. Finally. The robot mesh stacking device adopts intelligent robot stack.which grab the 3d fence onto the collect mesh car. Its advantage is that it can accurately and quickly place the mesh in order, reduce labor and save cost.
